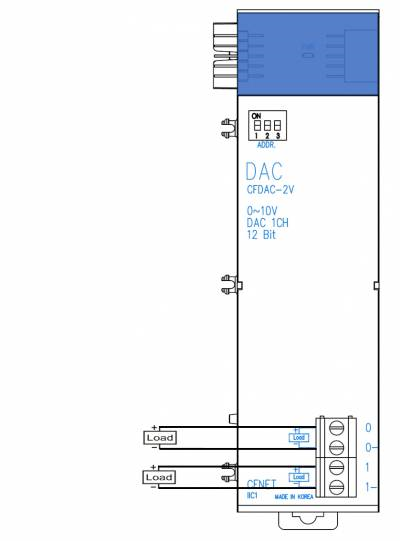

This is a DAC module that can output 0~10VDC voltage.

View at our online store.

• DA output points: 2 channels
• Output resolution: 12Bit (0 to 4094)
• Output range: 0~10VDC
• Error rate: ±0.1%
• Load resistance: 270 ohms or more
• Isolation: No isolation

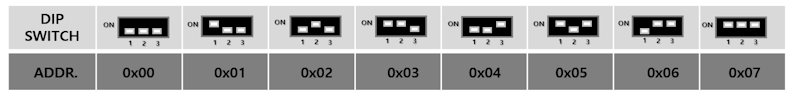

* Up to 8 CFDAC-1Vs can be used in one system with different address settings of 0x00~0x07.
