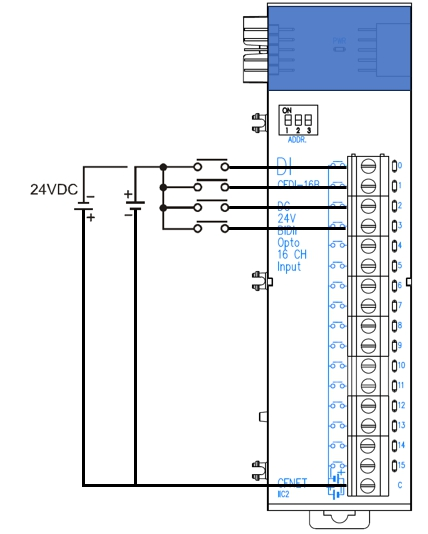

This is a 16-point bi-directional Digital input module.

View at our online store.

• Input Ports: 16
• Allowable input voltage: 18~26VDC
• Input current: about 5mA @24VDC
• Input impedance: 8.2K ohm
• Input response speed: about 350uS
• ON recognition level: > 18VDC
• OFF recognition level: < 13VDC
• Floating section: 13VDC < input < 18VDC
• Status LED OFF: < 7VDC

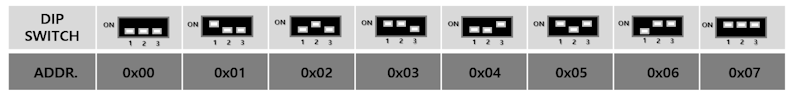

* Up to 8 CFDI-16Bs can be used in one system with different address settings of 0~7.

CFNET
