CFDO-8R
Relay output 8-point module, A contact output, the contacts are shorted when turned on, and open when turned off.
Electrical specifications
- Output Ports: 8
- Maximum switching voltage: 110VDC, 250VAC
- Maximum allowable current: 10A / 1 point
- Normal allowable current: 3A / 1 point
- Maximum on/off cycle: approximately 10Hz (10 times per second)

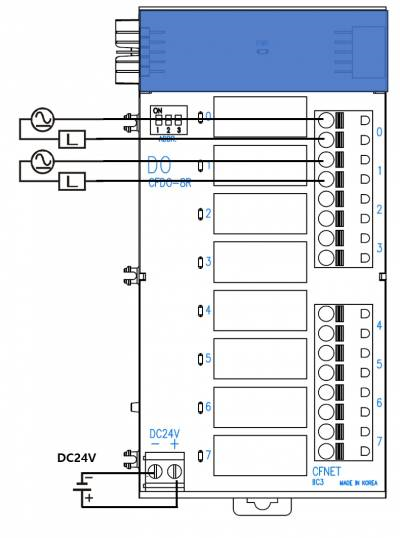

Wiring method
Setting the module's address
CFDO-8R shares an address with CFDO-16N module. In other words, addresses already in use by CFDO-16N cannot be used.
