Currently, this product is available for use with Modular FADUINO. It cannot be used with CFHDR-8U or ModularPi.

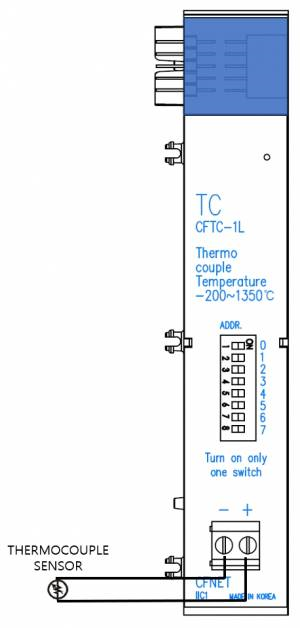

This is a module that can measure temperature using thermocoupler K, J, T, N, E, S, B, and R type sensors.

View at our online store.

• Sensor input points: 1 channel
• Conversion unit: 0.0625°C
• Error rate: ±1.5°C
• Isolation: No isolation

• Type K: -200°C ~ 1350°C
• Type J: -150°C to +1200°C
• Type T: -200°C to +400°C
• Type N: -150°C to +1300°C
• Type E: -200°C to +1000°C
• Type S: 250°C to +1664°C
• Type B: 1000°C to +1800°C
• Type R: 250°C to +1664°C

* Although the CFTC-1L's hardware and design is rated for the broad ranges listed above, and can be used with probes rated for those ranges, the CFTC-1L has only been validated for temperatures in the range of -50℃ ~ 500℃.

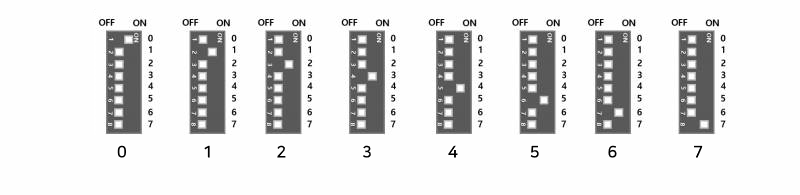

• Up to 8 CFTC-1L modules can be used in one system, each with a different address in the range of 0x00~0x07.
• The address setting method is different from other I/O modules: Only one of the DIP switches should be turned ON at any time.
