CFNET

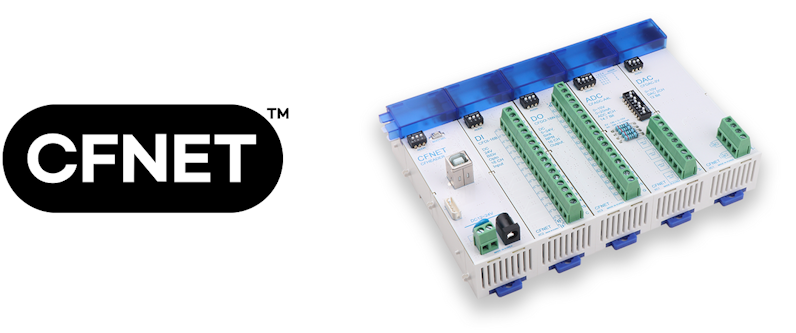

CFNET stands for Comfile Network, a specification developed by COMFILE Technology. It is a unified industrial I/O system designed to make various I/O modules interoperable so they can be used consistently across different environments.
Although processors vary widely—ranging from 8-bit and 32-bit MCUs to Raspberry Pi (Linux) or Windows PCs—the actual I/O needs are largely similar:
- Digital I/O for switches and relays
- Analog inputs for sensors
- Analog outputs for controlling devices like motors or LEDs

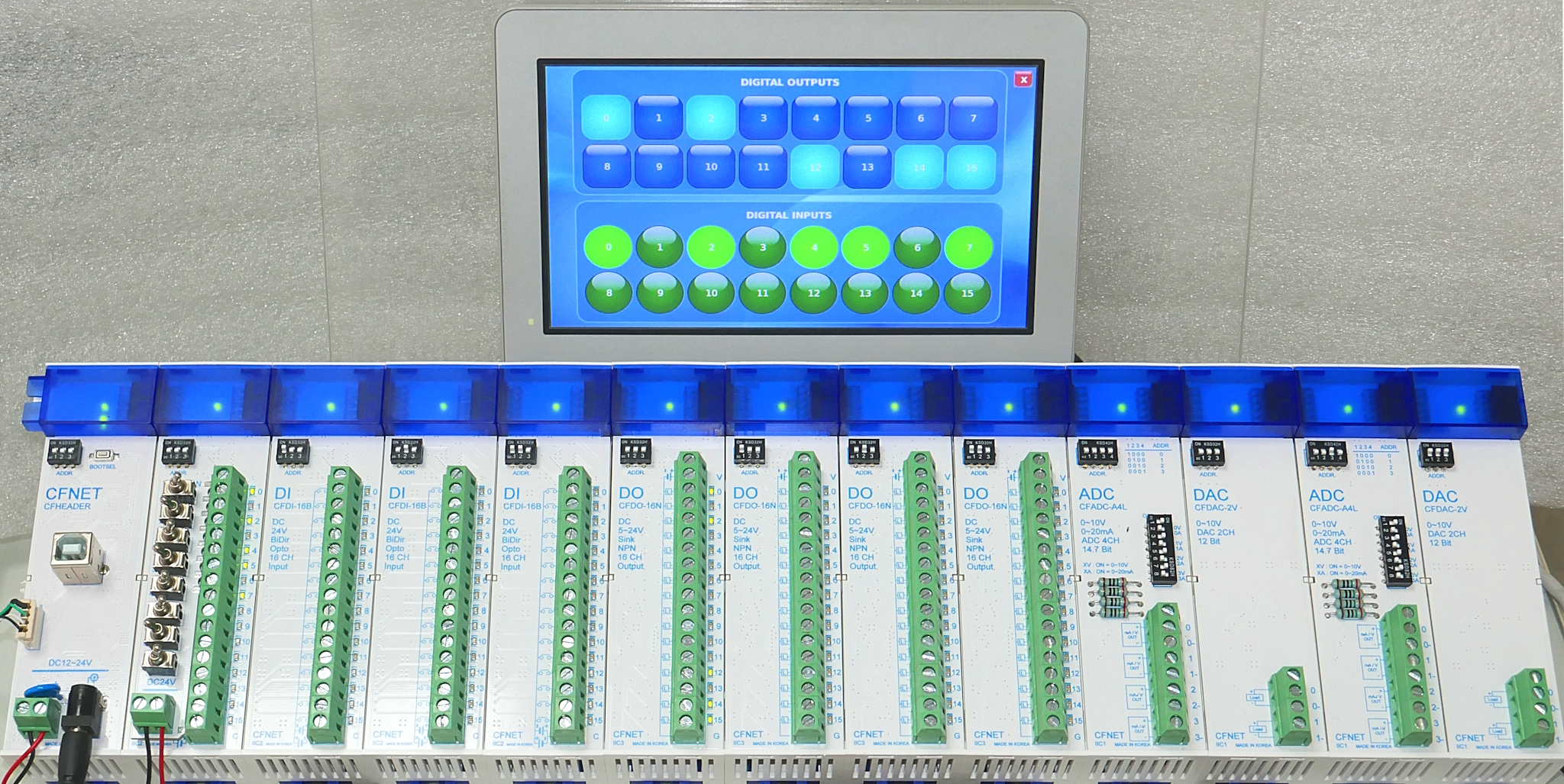

CFNET standardizes these common I/O functions into a single platform, allowing the same modules to work with virtually any processor.
I/O Modules
| CFDI-16B | CFDO-16N | CFDO-8R | CFADC-A4L | CFDAC-2V | CFTC-1L | |
|---|---|---|---|---|---|---|
| Detailed Information | [Click] | [Click] | [Click] | [Click] | [Click] | [Click] |
| Category | Digital Input | Digital Output | Digital Output | Analog Input | Analog Output | Analog Input |
| Number of channels | 16 | 16 | 8 | 4 | 2 | 1 |
| Specification | DC24V Opto-coupler | NPN TR DC5V~24V 120mA | Relay Dry Contact 110V~240VAC | 14.7 bit Resolution 0~20mA or 0~10VDC | 12 bit Resolution 0~10VDC | Thermocouple Temperature -50℃ ~ 500℃ |
| Address Range | 0~7 | 0~7 These 2 modules use the same address space | 0~3 | 0~7 | 0~7 | |
| How many can be used on one system1) | 8 | 8 | 4 | 8 | 8 | |
| Current consumption | 0.25W | 0.55W | 0.25W | 0.075W | 0.05W | 0.05W |
1)
The maximum number of I/O modules used in one system is 16.
