comfilepi:codesys:codesys8
Prepare the Serial port

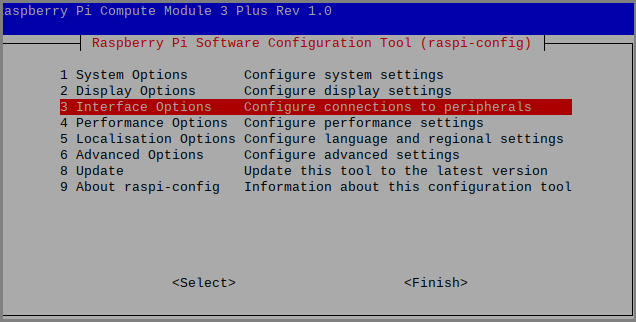

1. Enable the serial port (sudo raspi-config)
Please choose :

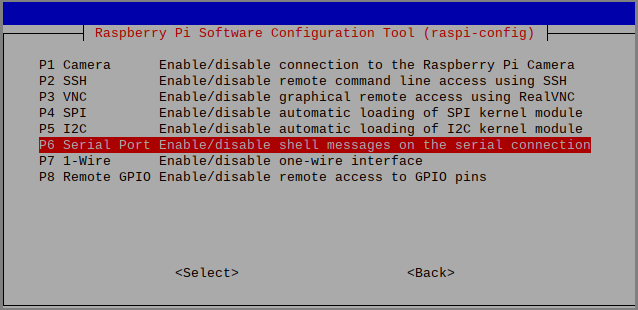

- Login shell accessible function over serial –> NO
- Enable hardware serial port –> YES
2. Edit the CODESYS configuration file

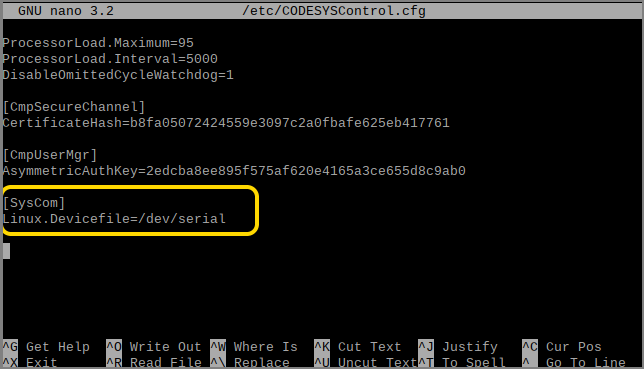

sudo nano /etc/CODESYSControl.cfg
[SysCom] Linux.Devicefile=/dev/serial
Press Ctrl+X and Y to save.

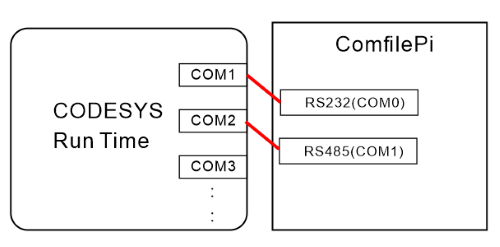

3. Internally CODESYS will be connected like this.
