cubloc:i2cread:index
I2CRead( )
variable = I2CRead(dummy)
| variable | Variable to store results. (No String or Single) |
| dummy Dummy value. |
Read a byte from the I2C ports set by SET I2C command. Use any value for the dummy value.
A = I2CRead(0)

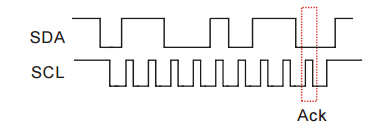

This command will send an ACK signal back to the slave I2C device. After reading a byte, an SCL pulse will be sent while SDA is kept low.
