The following patterns are invalid in Ladder Logic, but may not be caught by CUBLOC Studio's compiler.

1. Ladder Logic must always flow from left-to-right and top-to-bottom.

2. Ladder Logic cannot be drawn to the right of an output symbol.

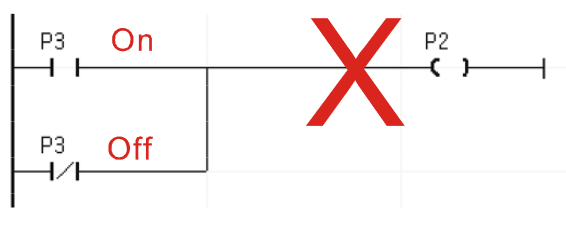

3. Opposite input states should not be connected to the same output.
